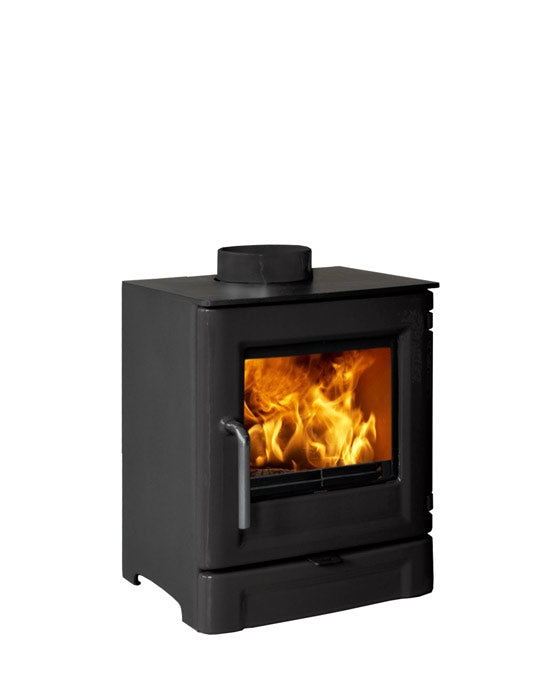

Hi-Flame R4 Ecodesign Stove
The R4 is the smallest Ecodesign Ready Stove in Hi-Flame's new family of stoves. This has all of the features gf its bigger brothers, the R5 and R6, but in a practical compact format, making it ideal for the smaller fireplace or smaller living space. A direct external air supply outlet is standard and there is one single user-friendly slider control to provide the perfect blend of combustion air to ensure an ultra-clean burn throughout the whole burn cycle and keep a clear glass. The subtle F-Type detailing on cast iron door, which covers the whole of the stove front, is carried through to the low cast iron-fronted plinth to create a seamless contemporary design with a larger than average sized window for a compact wood burner. The R4 is Ecodesign Ready and Defra Approved.
There is a new Logstore version being launched in September 2021
Specification
|
Model name |
R4 EcoDesign |
|
Nominal heat output to room |
3.7kW |
|
Efficiency(%) |
77 |
|
Dimension(H*W*D)(mm) |
455*370*395 |
|
Flue outlet |
5in/125mm |
|
Glass size(mm) |
258*238 |
|
Combustion chamber/ firebox size(mm) |
310*190*245 |
|
Maximum log length(mm) |
280 |
|
Maximum Fuel Load(KG) |
1.6 |
|
Ecodesign Energy Efficiency Rate |
A |
|
Mean CO emission (vol%) |
0.1 |
|
Gross weight(kg) |
54 |
|
Net weight(kg) |
45 |
Drawing
Documents
Files to download:
- Hi-Flame R4 Eco Stove DoC (REG EU 2015-1185)
- Hi-Flame R4 Eco Stove Product ERP and Fiche (REG EU 2015-1186)
- Hi-Flame R4 Stove Technical Documentation (REG EU 2015-1186)
- Hi-Flame R4 Stove DoP (REG EU305-2011)
- Hi-Flame R4 Stove CE Plate
- Hi-Flame R4 Stove Handbook (.pdf)
- Hi-Flame R4 Stove Dimensions (.jpg)
